The Pixel RPG

A walkable Mandalay Bay that mounts the terminal’s own screens

Published

July 25, 2026

Abstract

The pixel RPG is the third playable surface of The Mandalay Bay: a Phaser 3 top-down overworld of twenty-eight authored rooms, laid over the exact same chip wallet, save slot, and rule set as the Python CLI and the web terminal. This page is generated from the live world data in docs/rpg/js/data/ — every table below is read from the JSON the game itself loads at boot.

Keywords

Phaser, pixel RPG, overworld, quest design, Mandalay Bay

Launch the RPG Source Design document

1 What it is

Build a guest — archetype, skin tone, hair, outfit — arrive on Las Vegas Blvd, and walk in through the gold doors. From there the resort is a place rather than a menu tree: you cross the casino floor to reach the sports book, ride the tower up to a room that charges you nightly, and get stopped by staff who spotted you from across the carpet.

The reference feel is Pokémon — a top-down overworld, a START menu that holds your whole life, line-of-sight challengers, a collection dex, and secrets that pay in flavor rather than chips.

Tiles, props, and guest sprites are drawn at boot by TextureFactory.js (no vendored assets/tiles/ loader on the live path). Characters are 32×44 tuxedo-style pixel grids with a three-frame stride; the wardrobe recolors skin, hair, and outfit.

Code

pd.DataFrame(
    [
        {"Content": "Rooms", "Count": len(MAPS)},
        {"Content": "NPCs", "Count": sum(len(v) for v in NPCS.values())},
        {"Content": "Doors", "Count": sum(len(m.get("doors", [])) for m in MAPS.values())},
        {"Content": "Dialogue nodes", "Count": len(DIALOGUES)},
        {"Content": "Quests", "Count": len(QUESTS)},
        {"Content": "Easter eggs", "Count": len(EGGS)},
        {"Content": "Zone triggers", "Count": len(TRIGGERS)},
    ]
)

Table 1. World size at render time, read from the authored JSON

	Content	Count
0	Rooms	33
1	NPCs	78
2	Doors	76
3	Dialogue nodes	316
4	Quests	10
5	Easter eggs	22
6	Zone triggers	28

2 The delegation rule

The RPG does not reimplement game logic or game screens. Every casino, hotel, pool, and shopping flow lives once in docs/js/ as a buildXRenderers(ctx) factory. The web terminal spreads those factories into its renderer table; the RPG’s TerminalHostOverlay builds the same context and mounts them inside an encounter panel. A feature shipped to the terminal shows up in the RPG with no RPG-side work.

Code

flowchart LR
  LOGIC["docs/js/ — rules, wallet, world clock"] --> UI["docs/js/ui/ — buildXRenderers(ctx)"]
  UI --> APP["app.js — web terminal"]
  UI --> HOST["TerminalHostOverlay — RPG"]
  DATA["docs/rpg/js/data/*.json"] --> OW["OverworldScene"]
  OW -->|encounter id| HOST
  OW -->|Esc / X| MENU["MenuOverlay — START"]
  MENU --> HOST

flowchart LR
  LOGIC["docs/js/ — rules, wallet, world clock"] --> UI["docs/js/ui/ — buildXRenderers(ctx)"]
  UI --> APP["app.js — web terminal"]
  UI --> HOST["TerminalHostOverlay — RPG"]
  DATA["docs/rpg/js/data/*.json"] --> OW["OverworldScene"]
  OW -->|encounter id| HOST
  OW -->|Esc / X| MENU["MenuOverlay — START"]
  MENU --> HOST

The four exceptions are the screens that read better in-world: blackjack, hold’em, roulette, and the House of Blues rhythm minigame. Those are the battle screens, and they still take their bet through the shared stake-tier picker.

3 The property

Rooms are authored as declarative JSON — a base fill, ground rectangles, decor, a deterministic scatter rule for greenery, and explicit clears that keep doorways open — then compiled into tile layers by MapLoader.compileMap() at boot.

Code

rows = []
for mid, m in MAPS.items():
    rows.append(
        {
            "Wing": m.get("wing", "Unsorted"),
            "Room": m.get("label", mid),
            "Map id": mid,
            "NPCs": len(NPCS.get(mid, [])),
            "Exits": len(m.get("doors", [])),
            "Spawn": f"({m['spawn']['x']}, {m['spawn']['y']})",
        }
    )
world = pd.DataFrame(rows)
world["Wing"] = pd.Categorical(world["Wing"], categories=WING_ORDER, ordered=True)
world = world.sort_values(["Wing", "Room"]).reset_index(drop=True)

world.groupby("Wing", observed=True).agg(
    Rooms=("Room", "count"), NPCs=("NPCs", "sum"), Exits=("Exits", "sum")
).reset_index()

Table 2. Rooms, residents, and exits per wing

	Wing	Rooms	NPCs	Exits
0	Arrival	2	7	8
1	Casino	5	21	15
2	Retail	3	6	7
3	Bars	2	3	2
4	Hotel	6	13	16
5	Pool	4	6	8
6	Attractions	5	8	8
7	Back of house	1	2	1

Code

summary = world.groupby("Wing", observed=True).agg(
    Rooms=("Room", "count"), NPCs=("NPCs", "sum")
)
fig, ax = plt.subplots(figsize=(8.4, 4.0))
x = range(len(summary))
ax.bar([i - 0.2 for i in x], summary["Rooms"], width=0.4, label="Rooms",
       color="#C5050C", edgecolor="#7a0307")
ax.bar([i + 0.2 for i in x], summary["NPCs"], width=0.4, label="NPCs",
       color="#f0b429", edgecolor="#a8781a")
ax.set_xticks(list(x))
ax.set_xticklabels(summary.index, rotation=20, ha="right")
ax.set_ylabel("Count")
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.legend(frameon=False)
fig.tight_layout()
plt.show()

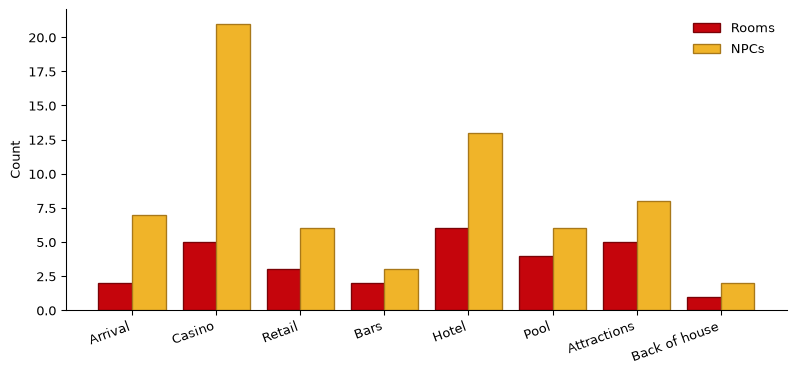

Figure 1. Where the world’s rooms and residents sit

Code

world

Table 3. Every room, its residents, and its exits

	Wing	Room	Map id	NPCs	Exits	Spawn
0	Arrival	Registration Lobby	registration_lobby	4	6	(15, 26)
1	Arrival	Valet & Parking	valet_garage	3	2	(26, 15)
2	Casino	Casino Floor North	main_resort	9	6	(15, 26)
3	Casino	Casino Floor South	casino_floor_south	4	5	(15, 3)
4	Casino	Foundation Room	foundation_room	3	1	(15, 26)
5	Casino	High Limit Salon	high_limit_salon	3	2	(15, 26)
6	Casino	Race & Sports Book	race_sports_book	2	1	(26, 15)
7	Retail	Convention Center	convention_center	2	2	(15, 26)
8	Retail	Sky Bridge	sky_bridge	1	3	(15, 26)
9	Retail	The Shoppes at Mandalay Place	mandalay_place	3	2	(15, 26)
10	Bars	Betty's Bar	betty_bar	2	1	(15, 26)
11	Bars	Skyfall Lounge	skyfall_lounge	1	1	(15, 26)
12	Hotel	Bathhouse Spa	spa	1	1	(15, 3)
13	Hotel	Delano Wing	delano_wing	1	3	(26, 15)
14	Hotel	Gentleman's Club — Velvet Ledger	gentlemans_club	3	1	(15, 26)
15	Hotel	Guest Floor Corridor	guest_corridor	4	4	(15, 26)
16	Hotel	Tower Elevator Lobby	hotel_tower	2	6	(15, 26)
17	Hotel	Your Room	guest_room	2	1	(15, 26)
18	Pool	Cabanas & Hot Tubs	cabana_row	2	1	(3, 15)
19	Pool	Mandalay Beach	mandalay_beach	2	4	(15, 3)
20	Pool	Moonlight Rave Stage	rave_stage	1	1	(15, 26)
21	Pool	Moorea Beach Club	beach_club	1	2	(15, 3)
22	Attractions	HOB Green Room	hob_green_room	1	1	(26, 15)
23	Attractions	House of Blues	house_of_blues	2	2	(15, 26)
24	Attractions	Shark Reef Exhibit Hall	shark_reef	2	1	(26, 15)
25	Attractions	Shark Reef Tunnel	reef_tunnel	1	2	(26, 15)
26	Attractions	ULTRA Arena Concourse	ultra_arena	2	2	(15, 26)
27	Back of house	Back of House	staff_corridor	2	1	(15, 26)
28	NaN	Excalibur Courtyard	excalibur_courtyard	2	1	(26, 15)
29	NaN	Las Vegas Blvd — Excalibur	strip_excalibur	2	2	(15, 3)
30	NaN	Las Vegas Blvd — Luxor	strip_luxor	3	3	(15, 3)
31	NaN	Las Vegas Blvd — Mandalay	strip_sidewalk	3	3	(15, 22)
32	NaN	Luxor Atrium	luxor_atrium	2	2	(26, 15)

Two doors are gated at the rope: the High Limit Salon checks chips and stake tier through docs/js/venues.js, and the Foundation Room wants Noir standing. Your own room door stops working while the folio is unpaid.

Code

gates = []
for mid, m in MAPS.items():
    for d in m.get("doors", []):
        conditions = []
        if d.get("venueGate"):
            conditions.append(f"venue gate: {d['venueGate']}")
        if d.get("requiresChips"):
            conditions.append(f"{d['requiresChips']:,} chips")
        if d.get("requiresFlag"):
            conditions.append(f"flag: {d['requiresFlag']}")
        if d.get("requiresRoomKey"):
            conditions.append("a working room key")
        if conditions:
            gates.append(
                {
                    "From": MAPS[mid].get("label", mid),
                    "To": MAPS.get(d["to"], {}).get("label", d["to"]),
                    "Requires": ", ".join(conditions),
                }
            )
pd.DataFrame(gates)

Table 4. Gated doors and what they ask for

	From	To	Requires
0	Registration Lobby	Your Room	a working room key
1	Casino Floor North	High Limit Salon	venue gate: high_limit_salon
2	Casino Floor North	Back of House	flag: hint_north_wall
3	High Limit Salon	Foundation Room	venue gate: foundation_room
4	Tower Elevator Lobby	Your Room	a working room key
5	Tower Elevator Lobby	Gentleman's Club — Velvet Ledger	venue gate: gentlemans_club
6	Guest Floor Corridor	Your Room	a working room key
7	House of Blues	HOB Green Room	flag: hob_backstage

4 Trainers

An NPC with a sight cone notices you walking into it, crosses the room, says its piece, and drops straight into its encounter. Each one challenges you once.

Code

trainers = [
    {
        "Who": npc["name"],
        "Where": MAPS[mid].get("label", mid),
        "Watches": npc["sight"].get("dir", npc.get("direction", "down")),
        "Range": npc["sight"].get("range", 4),
        "Encounter": npc.get("encounter", "conversation"),
    }
    for mid, roster in NPCS.items()
    for npc in roster
    if npc.get("sight")
]
pd.DataFrame(trainers).sort_values("Where").reset_index(drop=True)

Table 5. Line-of-sight challengers

	Who	Where	Watches	Range	Encounter
0	Blackjack Pit	Casino Floor North	down	5	blackjack
1	Stickman Stan	Casino Floor North	left	4	craps
2	Spinster Sal	Casino Floor North	left	4	slots_fortune
3	Slot Tech Tessa	Casino Floor South	right	4	slots
4	Whale Warren	Foundation Room	left	5	slots_high_roller
5	Sasha	Gentleman's Club — Velvet Ledger	left	3	conversation
6	Housekeeper Hana	Guest Floor Corridor	down	5	conversation
7	Salon Dealer	High Limit Salon	down	6	blackjack
8	Jester Jess	Las Vegas Blvd — Excalibur	left	3	conversation
9	Lifeguard Lou	Mandalay Beach	down	4	pool_wave
10	Moonlight DJ	Moonlight Rave Stage	down	5	pool_rave
11	Bookie Blake	Race & Sports Book	down	5	sportsbook
12	Busker Bo	Sky Bridge	down	4	conversation
13	Valet Vic	Valet & Parking	down	4	conversation

Staff also keep schedules. NPCs carrying a schedule entry move with the world clock’s day phase rather than standing in one spot forever:

Code

scheduled = [
    {
        "Who": npc["name"],
        "Where": MAPS[mid].get("label", mid),
        "Phases": ", ".join(sorted(npc["schedule"])),
    }
    for mid, roster in NPCS.items()
    for npc in roster
    if npc.get("schedule")
]
pd.DataFrame(scheduled).sort_values("Where").reset_index(drop=True)

Table 6. NPCs who move with the clock

	Who	Where	Phases
0	Barkeep Betty	Betty's Bar	dawn
1	Spinster Sal	Casino Floor North	dawn
2	Security Sam	Casino Floor North	dawn, dusk, late, midday
3	Cocktail Cora	Casino Floor South	dawn
4	Housekeeper Hana	Guest Floor Corridor	late
5	Cab Line Carl	Las Vegas Blvd — Mandalay	late
6	Lifeguard Lou	Mandalay Beach	late
7	Bookie Blake	Race & Sports Book	late
8	Tourist Tina	Registration Lobby	dawn, dusk, late

5 Quests

Quest progress is derived, never incremented. QuestManager.syncDerived() reads reef photos, bar orders, dex counts, purchases, unlocked vignettes, egg count, and resort completion straight from shared session state, so a quest can never disagree with the system that produced it. Work you did before accepting a quest still counts — the derived value is banked and applied when you take the job.

Code

pd.DataFrame(
    [
        {
            "Quest": q["label"],
            "Given by": q.get("giverName", q.get("giver", "—")),
            "Category": q.get("category", "—"),
            "Goal": q.get("target", 1),
            "Reward": q.get("reward", "—"),
        }
        for q in QUESTS.values()
    ]
)

Table 7. The quest board from js/data/quests.json

	Quest	Given by	Category	Goal	Reward
0	Shark Reef Photographer	Reef Docent	collection	5	Reef Photographer badge (cosmetic)
1	Dana's Lucky Hand	Blackjack Pit	tables	1	Dealer's nod (cosmetic)
2	Mandalay Bar Crawl	Barkeep Betty	amenities	3	Betty's coaster (cosmetic)
3	Meet the Pit	Hold'em Pit	collection	7	Pit regular lanyard (cosmetic)
4	Jackpot Hunt	Spinster Sal	slots	8	Loose-slot map (cosmetic)
5	Suite Stories	Clerk Carmen	hotel	5	Do-not-disturb hanger (cosmetic)
6	Eleven Acres	Lifeguard Lou	pool	4	Wave pool wristband (cosmetic)
7	Sky Bridge Haul	Shop Clerk	amenities	6	Mandalay Place tote (cosmetic)
8	Resort Completionist	Golden Statue	meta	100	Golden statue wink (cosmetic)
9	The Bay Remembers	Janitor Joe	secrets	10	Back-of-house key ring (cosmetic)

6 Collections

The START menu carries three collections, all counting toward resort completion.

Collection	Entries	Filled by
Dex — Shark Reef	5 species	Photographing the reef
Dex — Slot floor	14 machines	Playing each machine once
Dex — Staff met	Every dealer and resort NPC	Talking to people
Bag	Quest items, mall purchases, minibar tabs	Playing
Secrets	12 easter eggs	Poking at things

Easter eggs are cosmetic only — an egg never pays chips. That is a hard design rule, and the world-data checker enforces that every egg flag is actually reachable from something in the world.

Code

pd.DataFrame(
    [{"Secret": e["label"], "Hint": e["hint"]} for e in EGGS.values()]
)

Table 8. The secrets board — hints only, no reveals

	Secret	Hint
0	Cherry on top	Somewhere a machine still pays in fruit.
1	Retro palette	Up up down down… you know the rest.
2	Back of house	A wall that isn't quite a wall.
3	The talking plant	Stand still near the lobby greenery.
4	Statue etiquette	Everyone touches the golden statue. Not everyo...
5	Lock of the week	Ask the bookie what he actually likes.
6	The floor that isn't	Elevators skip a number for a reason.
7	555-0199	Dial the number nobody answers.
8	Do not tap the glass	The sign says do not. The sign is a suggestion.
9	The old bell	Some jackpots still ring analog.
10	Delano ghost floor	The quiet tower keeps quieter guests.
11	Green room list	Backstage has a guest list. You are not on it.
12	Velvet guest list	Ask the floor hostess who still owes on Row F.
13	Off-menu pour	The bottle captain keeps a pour that isn't pri...
14	Velvet back hall	Make it rain, then ask security about the serv...
15	Monsoon receipt	Make it monsoon more than once.
16	The ledger itself	Tip enough that the room starts keeping score.
17	Louis toast	Order the bottle that requires a spine.
18	Bar tab mosaic	Keep ordering until the tab looks like art.
19	Perfect cascade	Stop Tip Cascade dead-center in the green.
20	Triple Ace	Nail Bottle Memory when Blair stacks Ace three...
21	Felt ace	Win Dante's Felt Flip on an ace.

7 Time and money

docs/js/world-cycle.js is the single clock for all three surfaces. Two real hours make one resort day, split into four phases. In the overworld that clock tints the screen, walks NPCs to their scheduled positions, announces the day’s rotating reservation requirement, posts daily resort charges to your wallet, and — if the folio goes unpaid — evicts you and stops the room door from opening until you settle at the desk or win it back on the floor.

8 Controls

Input	Action
WASD / arrows	Walk
Tap / click a tile	Walk there — the resort is playable on a phone
Shift	Run — faster once a host comps the golf cart at Platinum
E / Enter / Space	Talk to whoever you are facing, advance dialogue
Esc / X	START menu
T	Trainer Card and wardrobe
P	MGM Rewards phone
↑↑↓↓←→←→BA	Retro palette

On a phone the canvas fills the screen and a thumb pad appears in the bottom corners — a d-pad, B to run, A to talk, ☰ for the START menu — and it hides itself whenever a conversation or a panel takes over. You can also ignore the pad completely: tap a tile to walk there, tap a person to walk over and talk, and tap anywhere to advance dialogue.

Gold walkways are the wayfinding: they connect the entrance, the pits, the aisles, and every door. Dark trim marks where one floor type ends, and floating signs name the zone you are standing in.

9 Saves

The RPG writes into the same slot as the terminal and the CLI. SAVE_VERSION is 8; rpg carries position, archetype, flags, quests, inventory, dex, eggs, map visits, options, and reputation. A v7 save migrates forward without renaming a key and keeps the map it was saved on. On the Python side, mandalay_bay/saves.py carries the web-only keys through a CLI load/save round trip untouched, so playing in the terminal never erases pixel progress.

10 Extending it

Full detail lives in the Pixel RPG GDD; the short version:

To add…	Do this
A room	Add a record to `scripts/_author_maps.py`, regenerate, wire doors both ways
An NPC	Add to the `NPCS` table plus a `*_greet` node in `dialogues.json`
A quest	Add to `quests.json`, derive its progress in `QuestManager.syncDerived()`
A casino screen	Build it in `docs/js/ui/` and route it from `HostedEncounters.js` — never twice

Then run the checks:

node scripts/smoke-test-rpg.mjs     # world-data referential integrity
python3 scripts/smoke-test-web.py   # browser walk + end-to-end journey
python3 -m pytest                   # Python rules
